HW 3m3/h

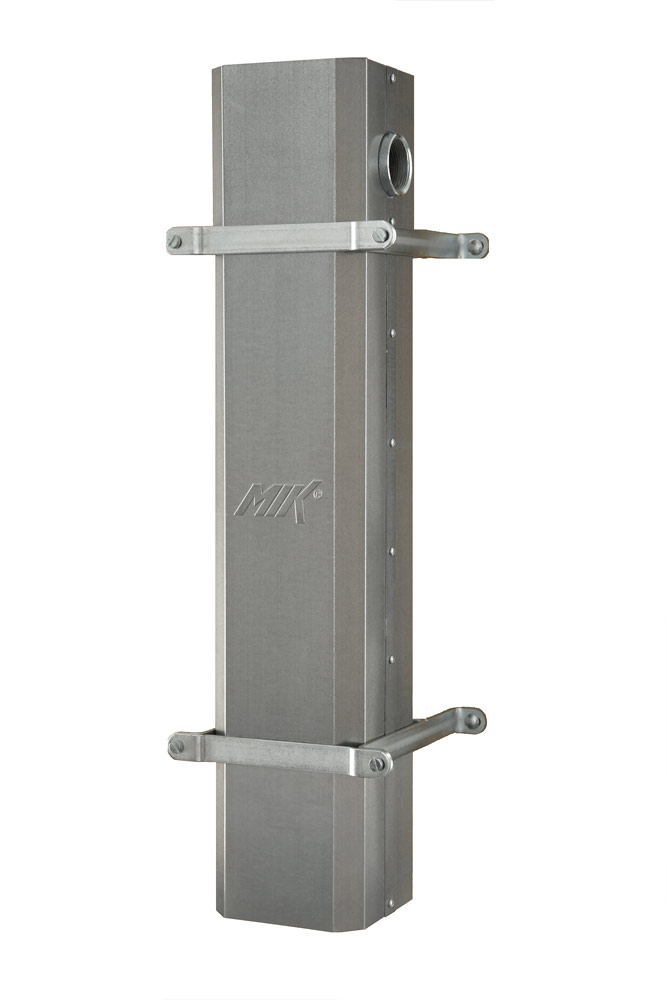

Hydraulic separator HW 60

Technical specification

Flow rate
Boiler connections
Consumer connections
Distance h1
Max. working temp.
Max. working pressure

up to 3 m3/h
internal thread G 1″
internal thread G 1″
375 mm
85/90 °C
6 bar

Download:

Technical sheet HW 60
Technisches Datenblatt HW 60

850 005 HW 60_main-min
850 005 HW 60_open_en-min

item selection:

HW 60

Description Flow rate Connection distance h1 [mm] Code -heating* Code -cooling*
Hydraulic separator HW 60 with insulation up to 3 m3/h 375 850005 8500051
Send inquiry
Related products:

Wall mountings H-HV >>

840 008 H-HV 150
  • 100 or 150 mm separator centre distance to wall
  • Pack contents 2 pcs.

H-HV 100

Distance wall-mean hydraulic separation Article number
100 mm 840007
Send inquiry

H-HV 150

Distance wall-mean hydraulic separation Article number
150 mm 840008
Send inquiry
