Hydraulic separators

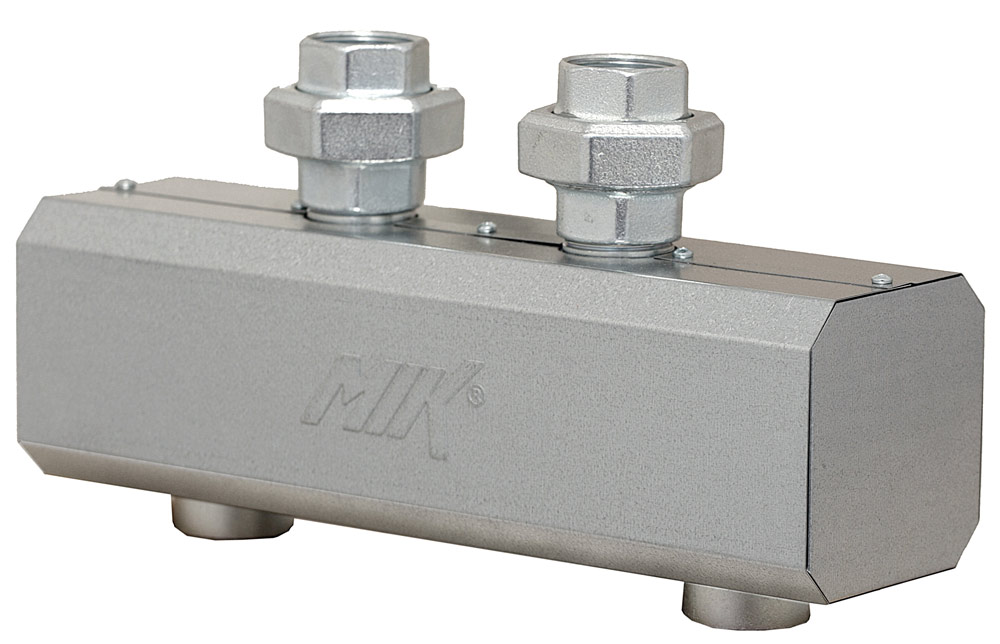

Hydraulic separator HW 60/125-1″

Technical specification

Flow rate
Boiler connections
Distance L1
Consumer connections
Distance L2
Max. working temp.
Max. working pressure

up to 3 m3/h
 internal thread G 1″
250 mm
external thread R 1″
125 mm
85/90 °C
6 bar

Download:

Technical sheet HW 60/125-1
Technisches Datenblatt HW 60/125-1

Item selection:

HWK 60/125-1"

Description Flow Holender Code -heating* Code -cooling*
Hydraulic separator HW 60/125-1″ with insulation and two union flat seat fittings up to 3 m3/h 1″ F/F 850012 8500121
Send inquiry
Related products:

Wall mountings H-HV >>

840 008 H-HV 150
  • 100 or 150 mm separator centre distance to wall
  • Pack contents 2 pcs.

H-HV 100

Distance wall-mean hydraulic separation Article number
100 mm 840007
Send inquiry

H-HV 150

Distance wall-mean hydraulic separation Article number
150 mm 840008
Send inquiry

HV 60/125 >>

HV60-125-featured

HV 60/125 SG >>

840 001 HV 60-125-SG-2_webpage_01-min

HW 60/125-1″ is combined with HV 60/125 and HV 60/125 SG manifolds
