HW 8 m3/h

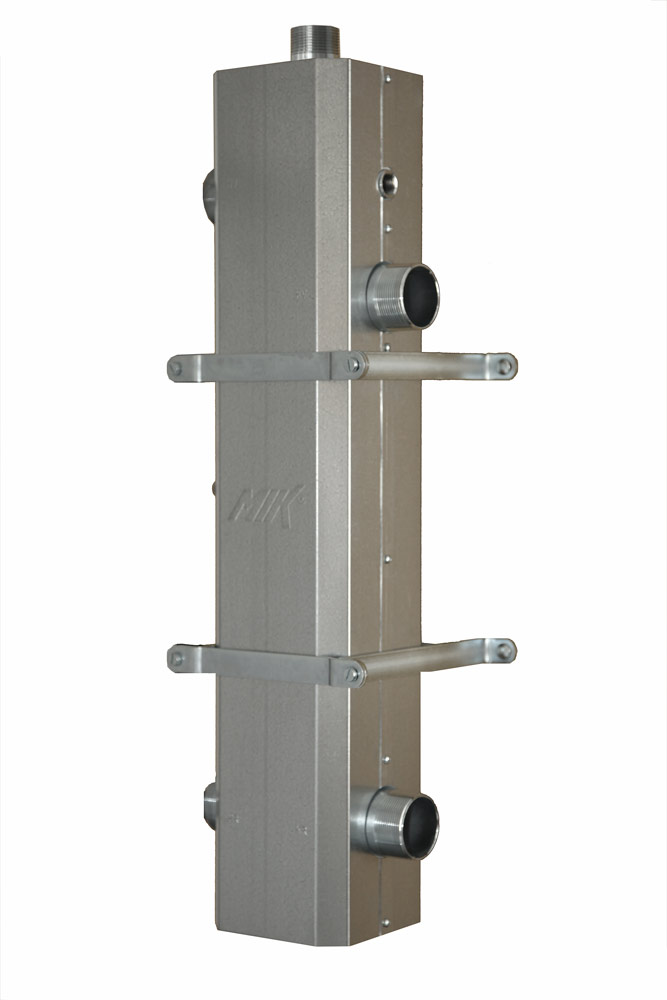

Hydraulic separator HW 80/570A

Technical specification

Flow rate
Boiler connections
Distance h1
Consumer connections
Distance h2
Max. working temp.
Max. working pressure

up to 8 m3/h
external thread R 2″
470 mm
external thread R 2″
570 mm
85/90 °C
6 bar

Download:

Technical sheet HW 80/570A
Technisches Datenblatt HW 80/570A

600 081 HW 80-570A_main-min
600 081 HW 80-570A_open_en-min

Item selection:

HW 80/570A

Description Max flow Offset h1 [mm] Offset h2 [mm] Code -heating* Code -cooling*
Hydraulic separator HW 80/570A with insulation 8 m3/h 470 570 600081 6000811
Send inquiry
Related products:

Wall mountings H-HW >>

850 101 H-HW 220-min
  • 160 or 220 mm distance from separator centre to wall
  • Pack contents 2 pcs.

HV 80/125 >>

H-HW 160

Distance wall-mean hydraulic separation Article number
160 mm 850101
Send inquiry

H-HW 220

Distance wall-mean hydraulic separation Article number
220 mm 850102
Send inquiry
