Flow rate:
Output at ΔT=20°C:
Connections distance:
Boiler connections:
Consumer connections:
Max. working temperature:
Max. working pressure:

up to 7,3 m³/h
up to 165 kW
125 mm
external thread R 2”
external thread R 1 ¼”
85/90 °C
6 bar

Download:

Technical sheet HV 80/125
Technisches Datenblatt HV 80/125

HV 80/125 variants for 2 and 3 consumer circuits:

Item selection:

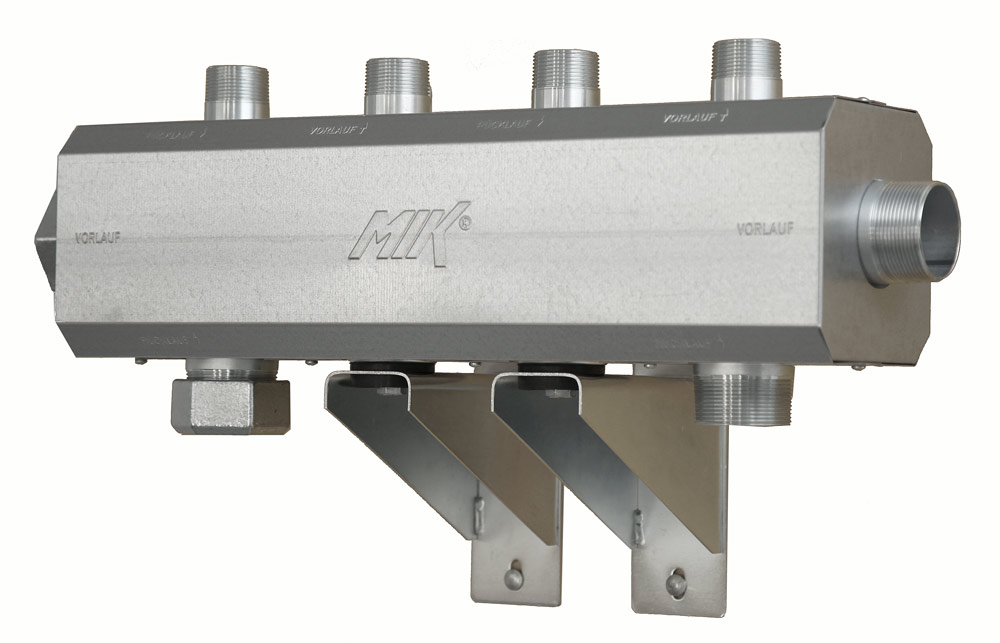

HV 80/125 manifold is equipped with two blank nut caps 2″

Number of heating circuits	Built-in length L [mm]	Offset A [mm]	Code -heating*	Code -cooling*
2	625	125	843102	8431021

Number of heating circuits	Built-in length L [mm]	Offset A [mm]	Code -heating*	Code -cooling*
3	875	375	843103	8431031

Number of heating circuits	Built-in length L [mm]	Offset A [mm]	Code -heating*	Code -cooling*
4	1125	625	843104	8431041

Number of heating circuits	Built-in length L [mm]	Offset A [mm]	Code -heating*	Code -cooling*
5	1375	625	843105	8431051

Number of heating circuits	Built-in length L [mm]	Offset A [mm]	Code -heating*	Code -cooling*
6	1625	875	843106	8431061

Centre to wall distance	Code
160 mm	840010

Centre to wall distance	Code
220 mm	840011

Variable height	Code
450 – 660 mm	840015

Variable height	Code
650 – 900 mm	840016

Description	Code
Coupling tube VR 2″ with 3 union flat seat fittings 2″ and insulation	600085

The HV 80/125 is combined with hydraulic switches HW80/570A or HW80/570 and VR 2″ coupling tube.
